Product Summary

Datasheets PC410L0NIP0F Series

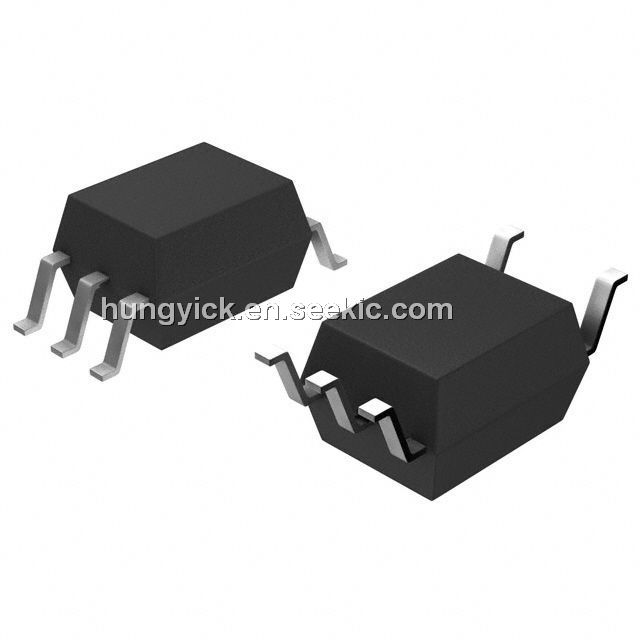

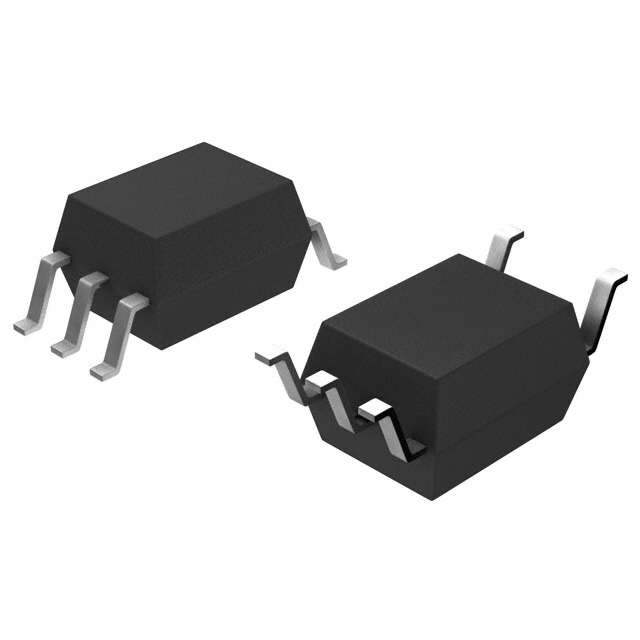

Product Photos 5-SOP PKG
Standard Package 3,000
Category Isolators
Family Optoisolators - Logic Output
Series OPIC?
Voltage - Isolation 3750Vrms
Number of Channels 1, Unidirectional
Current - Output / Channel 50mA
Data Rate 10Mbps
Propagation Delay High - Low @ If 48ns @ 7.5mA
Current - DC Forward (If) 20mA
Input Type DC
Output Type Open Collector
Mounting Type Surface Mount
Package / Case 6-SOIC (0.173", 4.40mm Width) 5 Leads
Supplier Device Package 5-SOP
Packaging Tape & Reel (TR)
Dynamic Catalog PC41010L0NIP0F Series
Other Names 425-2141-2



Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PC410
PC410

Other


Data Sheet

Negotiable
PC410H0NIP
PC410H0NIP

Other


Data Sheet

Negotiable
PC410L
PC410L

Other


Data Sheet

Negotiable
PC410L0NIP
PC410L0NIP


PHOTOCOUPLER OPIC 5-SOP

Data Sheet

Negotiable
PC410L0NIP0F
PC410L0NIP0F

Sharp Microelectronics

High Speed Optocouplers High CMR 10Mbps

Data Sheet

0-3000: $0.60
3000-8400: $0.60
8400-10000: $0.58
PC410L0NIT0F
PC410L0NIT0F

Sharp Microelectronics

High Speed Optocouplers High CMR 10Mbps

Data Sheet

0-2400: $0.63
PC410L0YIP
PC410L0YIP


PHOTOCOUPLER OPIC VDE 5-SOP

Data Sheet

Negotiable
PC410L0YIP0F
PC410L0YIP0F

Sharp Microelectronics

High Speed Optocouplers PC410L0NiP0F w/ VDE

Data Sheet

0-3000: $0.78
3000-8400: $0.78
